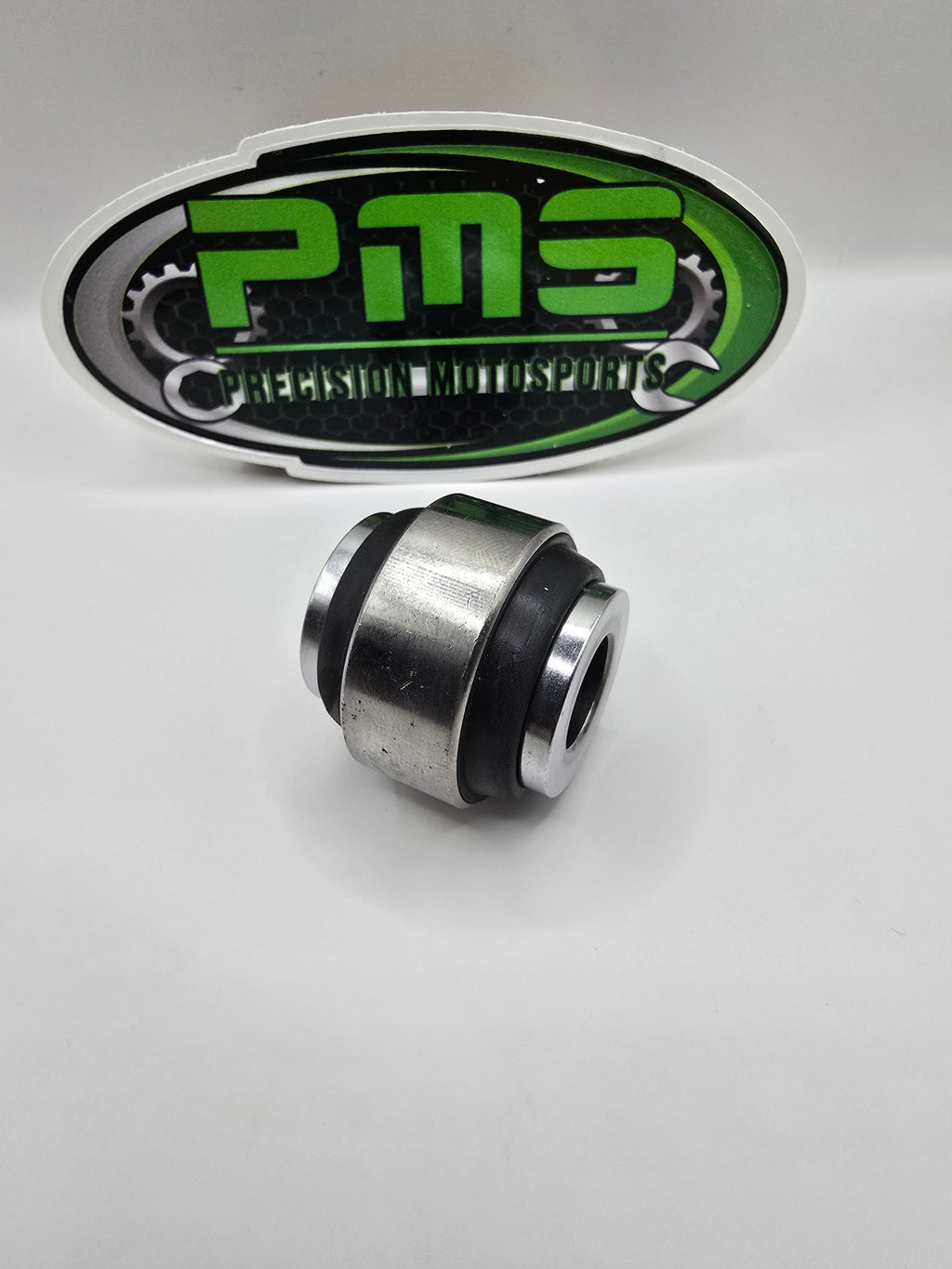

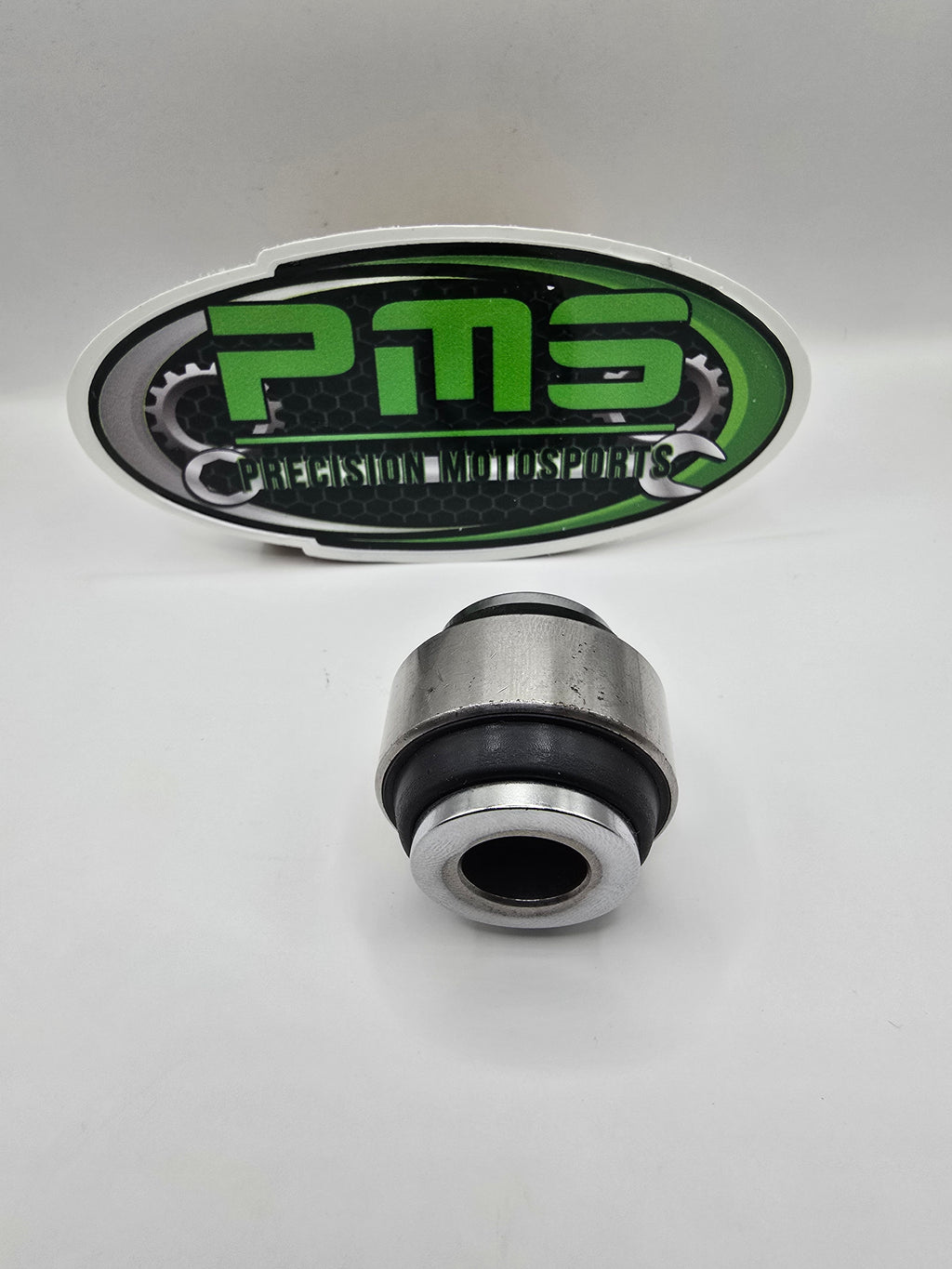

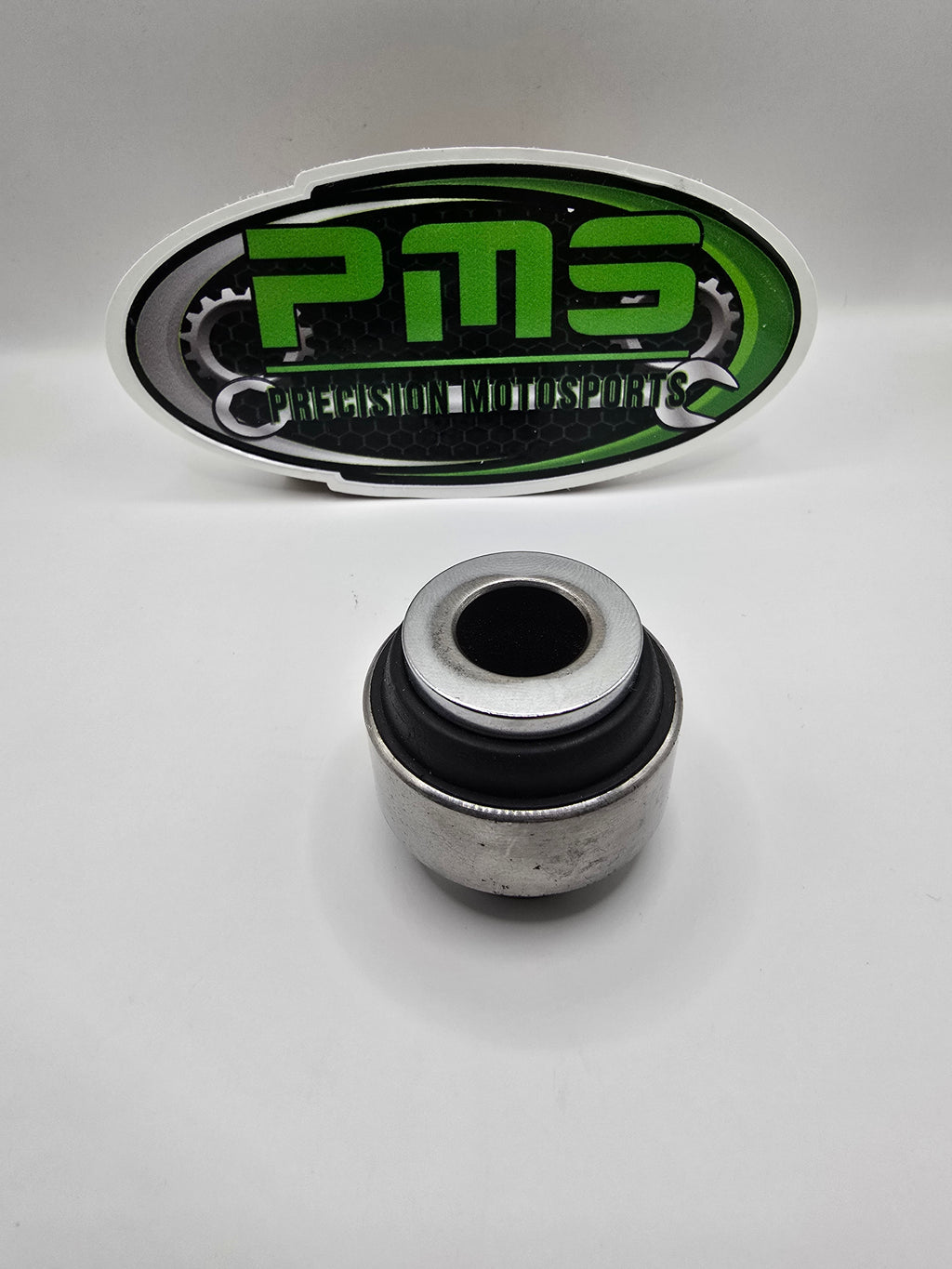

Can-Am Maverick R Lower Shock Bushing — 4130 Chromoly

Fits the lower shock position on the Can-Am Maverick R (model year 2024 through current, all trims), for the Fox 2.5 Podium Piggyback, Fox 3.0 Podium Piggyback, and Fox Live Valve Gen 3 shocks used on the platform. The eyelet bearing and the pressed portion of the eyelet are the wide-series WSSX12T size (3/4" bore) - the same on the upper and lower bushing. The center section differs slightly in width between the two positions, so order the lower bushing for the lower mount.

Where most replacements use a pressed-in uni-ball with separate misalignment spacers and an O-ring, this is a one-piece solid 4130 chromoly body, CNC-machined, with an integrated PTFE-lined ball. Fewer separate parts to wear, loosen, or crack.

It's paired with a custom dust boot built specifically for this joint, sealing out roughly 98% of outside contamination. Install with the Precision MotoSports installation tool and follow the instructions on our site.
